Product Usage - C-Profile

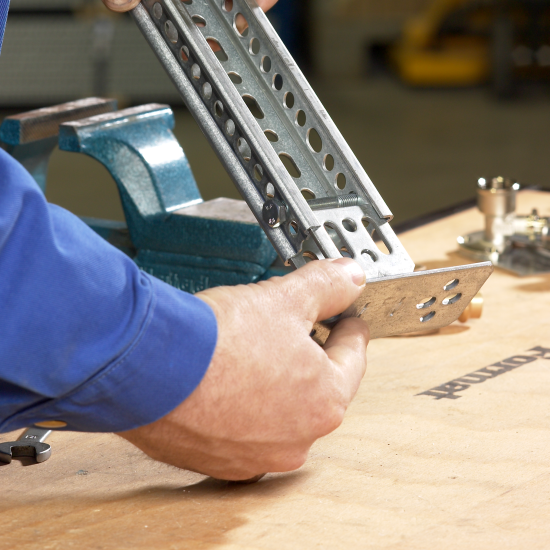

Clamp the various accessories onto the LEIFELD C-Profile Part# 1300 by using a nut and bolt (M8 x 60 mm Part# 1041) inserted as shown.
Clamp the various accessories onto the LEIFELD C-Profile Part# 1300 by using a nut and bolt (M8 x 60 mm Part# 1041) inserted as shown.

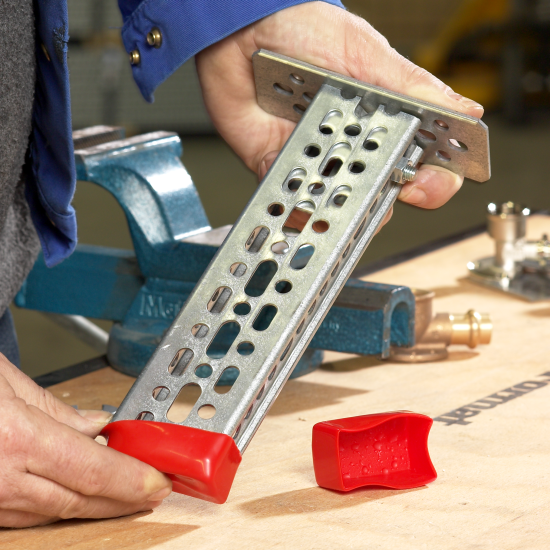

Don't forget to cover the sharp ends with the LEIFELD C-Profile End Cap Part# 1320.Prevent injuries!!
Don't forget to cover the sharp ends with the LEIFELD C-Profile End Cap Part# 1320.

Prevent injuries!!

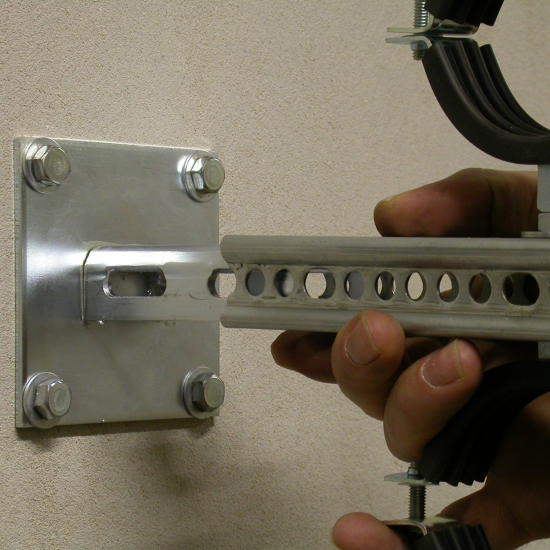

Only one mounting point available or is the load a bit heavier? Use the heavy-duty LEIFELD Wall Plate Part# 1315.
Only one mounting point available or is the load a bit heavier? Use the heavy-duty LEIFELD Wall Plate Part# 1315.

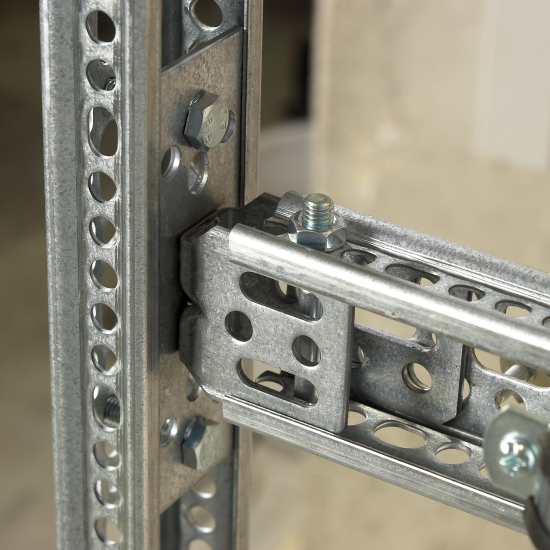

A strong combination.LEIFELD C-ProfileLEIFELD C-Bracket V Part# 1311LEIFELD C-Bracket H Part# 1310
A strong combination.

LEIFELD C-Profile
LEIFELD C-Bracket V
Part# 1311
LEIFELD C-Bracket H Part# 1310

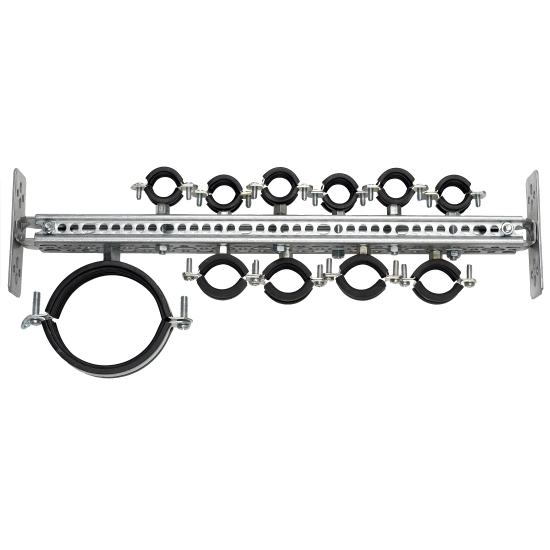

LEIFELD Profile: Use when extra rigidity is required.Fit piping to both sides without expensive special parts!
LEIFELD Profile: Use when extra rigidity is required.

Fit piping to both sides without expensive special parts!

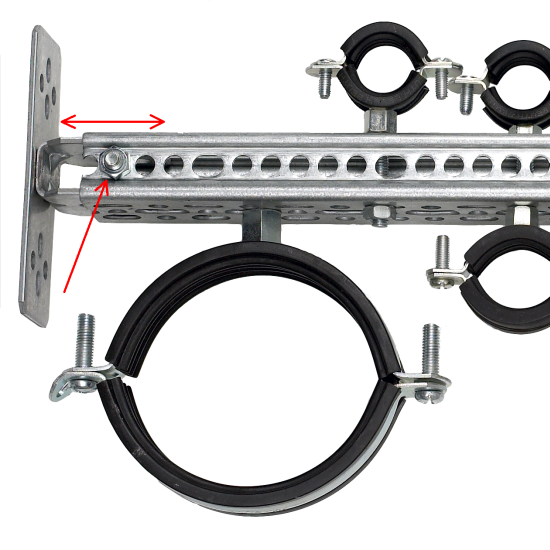

1. Lateral adjustment possible after fitting.
1. Lateral adjustment possible after fitting.

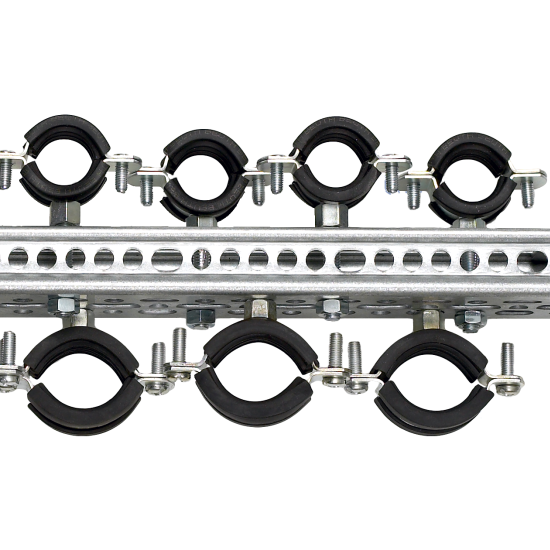

2. Space at a premium?	Offset the pipe-clamps to fit even more pipes onto the LEIFELD C-Profile!
2. Space at a premium?

Offset the pipe-clamps to fit even more pipes onto the LEIFELD C-Profile!
