Wellrohr_DVGW

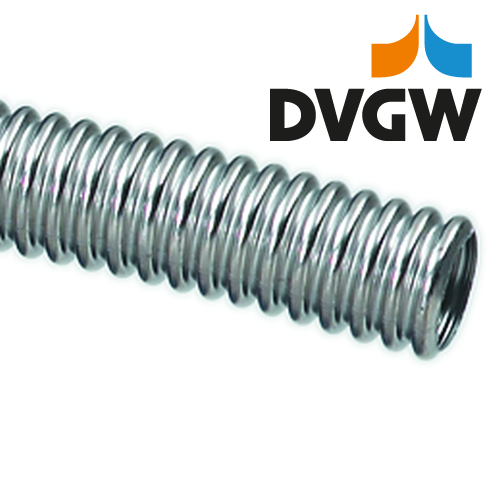

EUROTIS CSST AISI 316L - DN25

Print
Category: CSST AISI 316L, DN12 - DN25
Part#: EWG25xx

EUROTIS CSST DN25
DVGW: Drinking Water GW354 (15 bar) DVGW: Gas VP 616 (100 mbar)
Austenitic CSST, Material No. 1.4404 to EN 10088-2. AISI 316L.
O.D.: 33,0 mm, I.D.: 26,5 mm, Wall thickness: 0,3 mm
Use union nut EV25 (1.1/4"), gaskets ED25, EPDM25 or GR25
Pack Qty. = 1 Roll



Usage - Produce a flat-sealing flange    Usage - Produce a flat-sealing flange

Usage - Produce an O-Ring connection    Usage - Produce an O-Ring connection

Film - Produce a flat-sealing flange    Film - Produce a flat-sealing flange

Film - Produce an O-Ring connection    Film - Produce an O-Ring connection

Example Applications – EUROTIS CSST    Example Applications - EUROTIS CSST

Technical Data Sheet - download    Technical Data Sheet - download

  Name Part#
Wellrohr_DVGW
EWG2505 - EUROTIS CSST AISI 316L - DN25 x 5m EWG2505
− Roll +
Wellrohr_DVGW
EWG2510 - EUROTIS CSST AISI 316L - DN25 x 10m EWG2510
− Roll +
Wellrohr_DVGW
EWG2525 - EUROTIS CSST AISI 316L - DN25 x 25m EWG2525
− Roll +
Wellrohr_DVGW
EWG2550 - EUROTIS CSST AISI 316L - DN25 x 50m EWG2550
− Roll +
