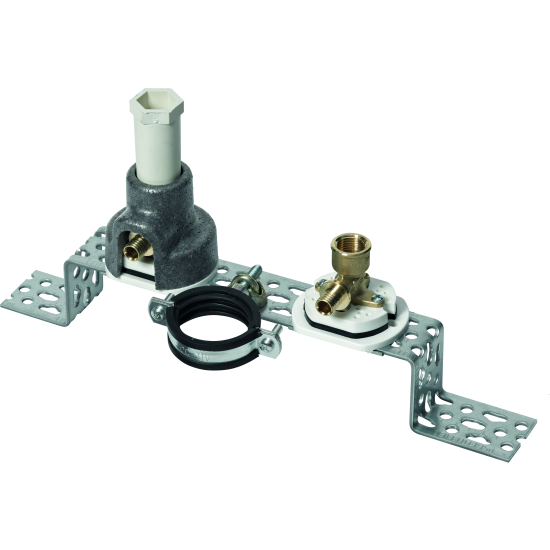

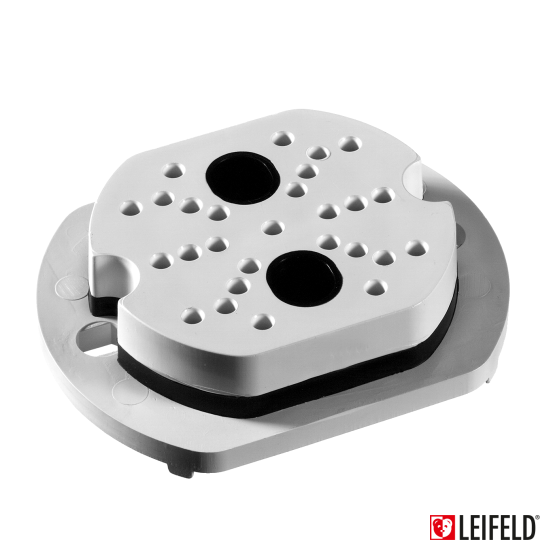

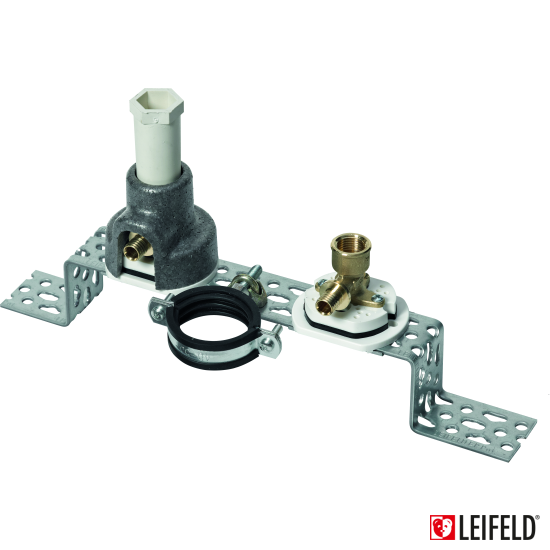

Fraunhofer Institute certified sound insulation for all wall elbows with mounting holes at 40mm centers, suitable for installations on the LEIFELD Strap, ...

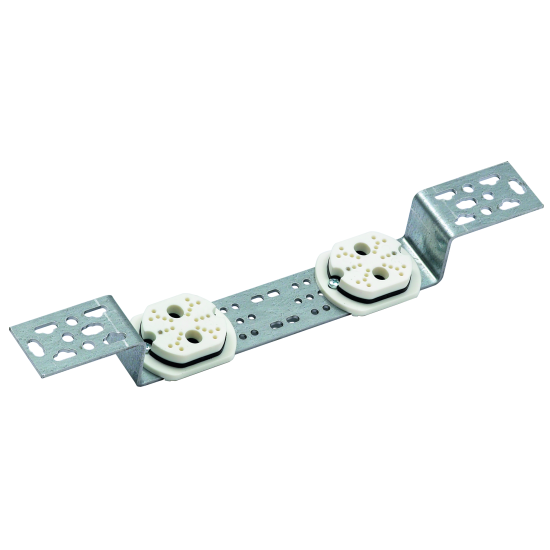

... the LEIFELD MultiMount, ...

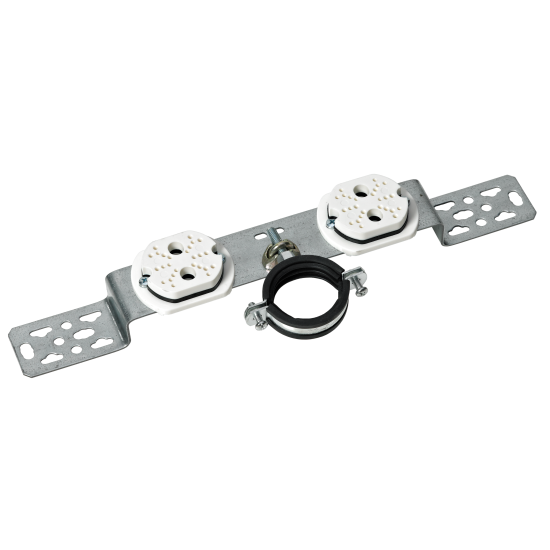

... the LEIFELD SaniMount ...

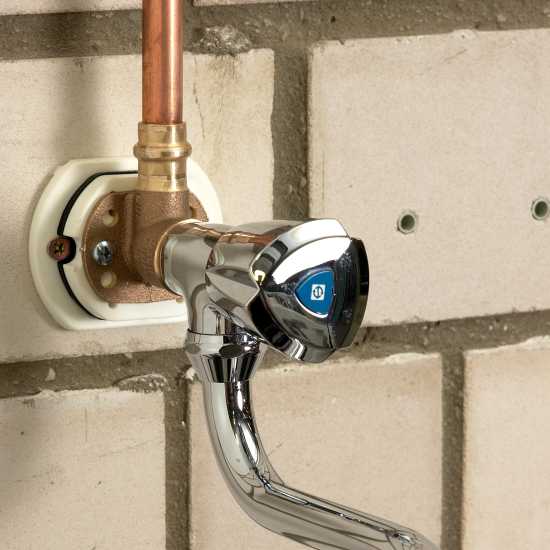

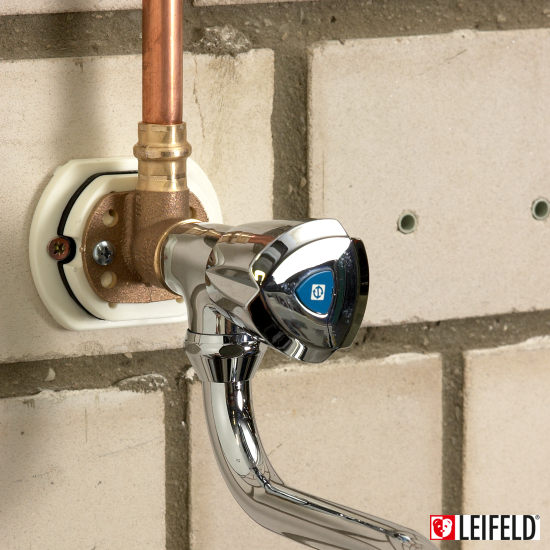

... or on its own!

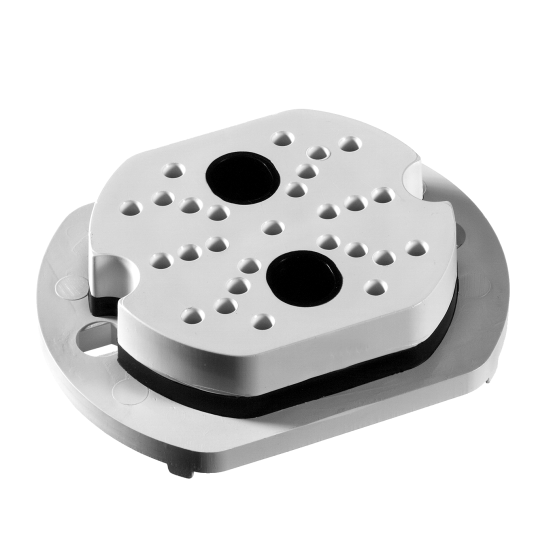

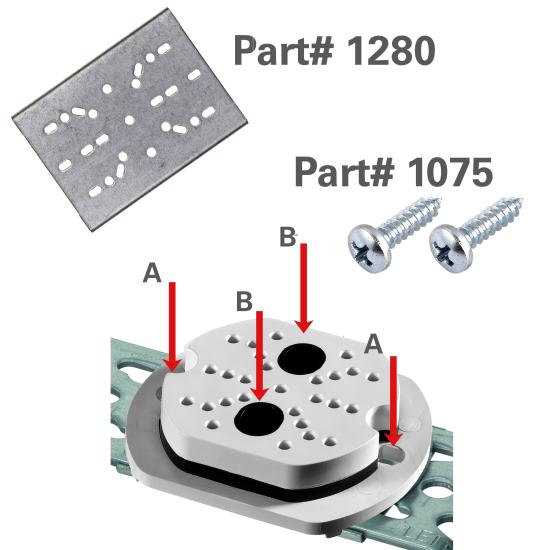

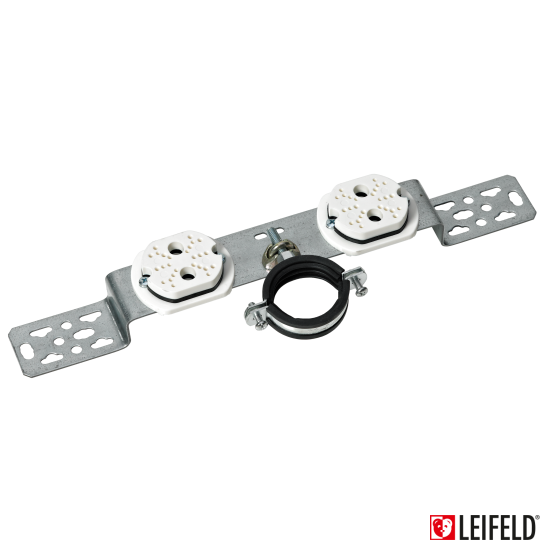

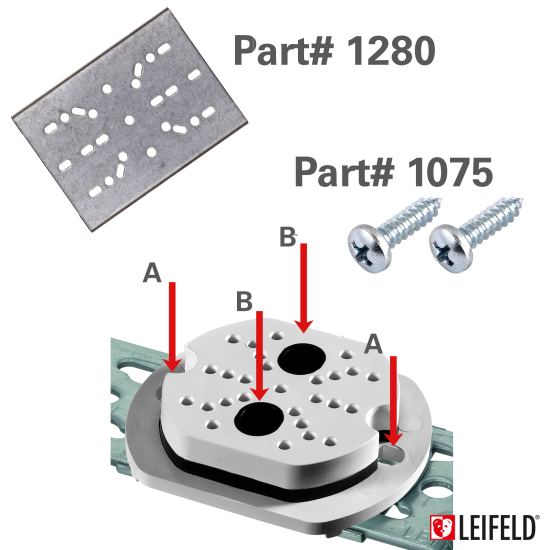

Secure the LEIFELD Sound Shield with a LEIFELD Backing Plate. Use either Part# 1280 and two 4,8 x 16mm self-tapping screws Part# 1075 or ....

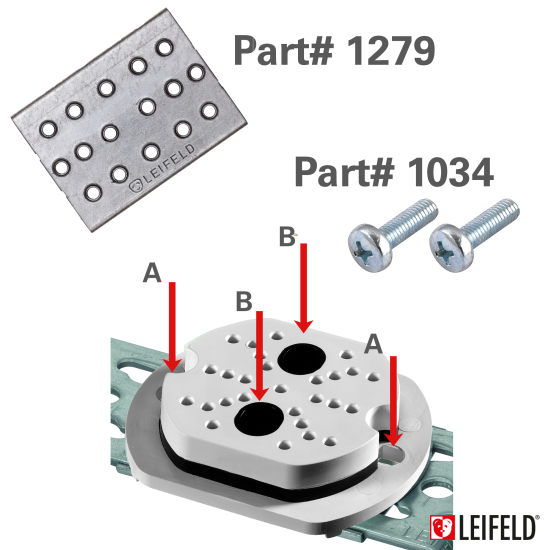

... Part# 1279 and two M5 x 16mm panhead screws Part# 1034. Secure using either the outside (A) or inside (B) holes.

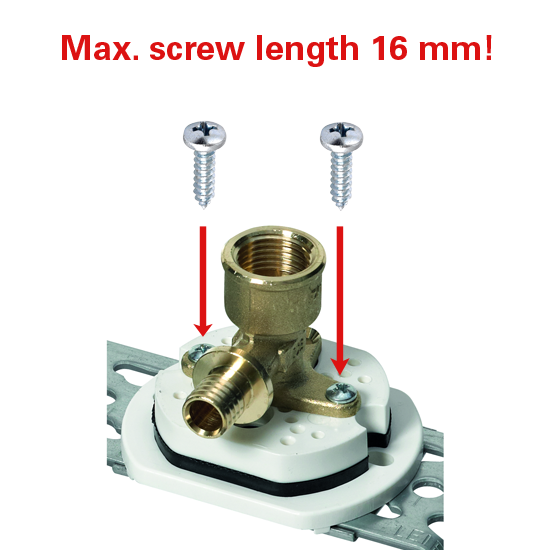

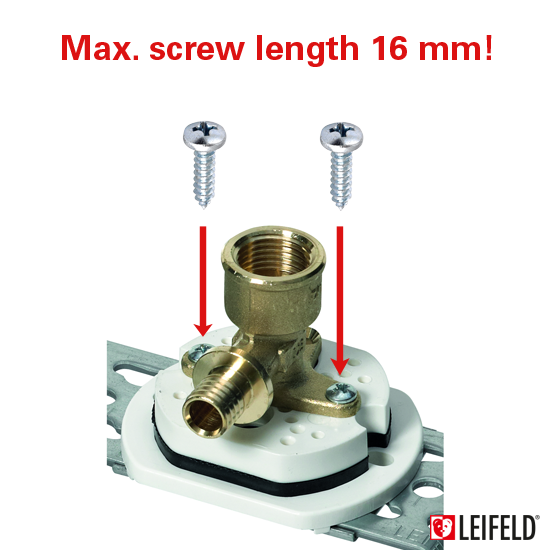

Secure the wall elbow using two self-tapping screws, either 4,2 x 16mm Part# 1074 or 4,8 x 16mm Part# 1075. Note: Max. screw length 16mm!

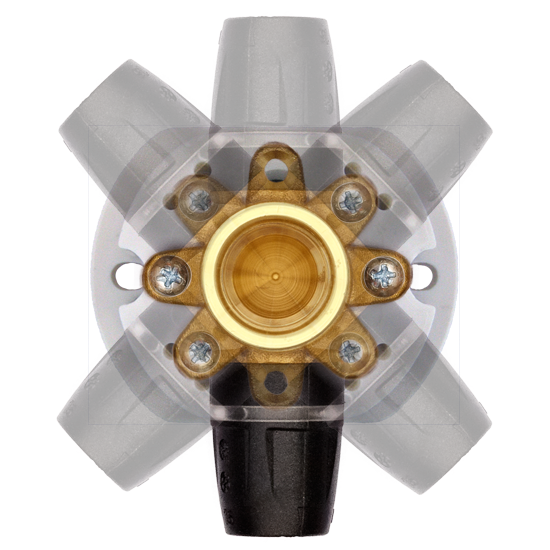

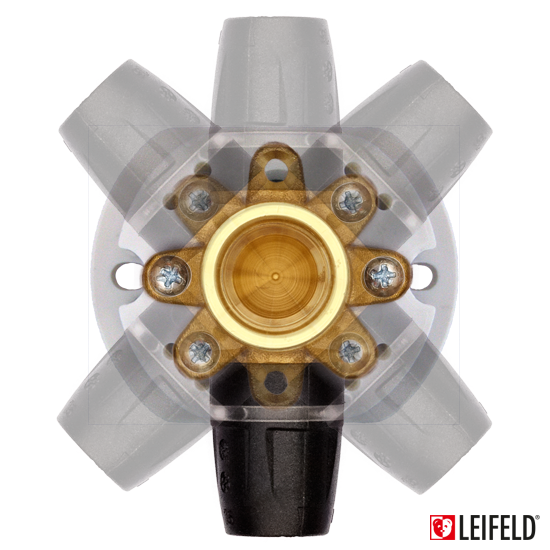

Wall elbows can be rotated in 45° steps on the LEIFELD Sound-Shield.

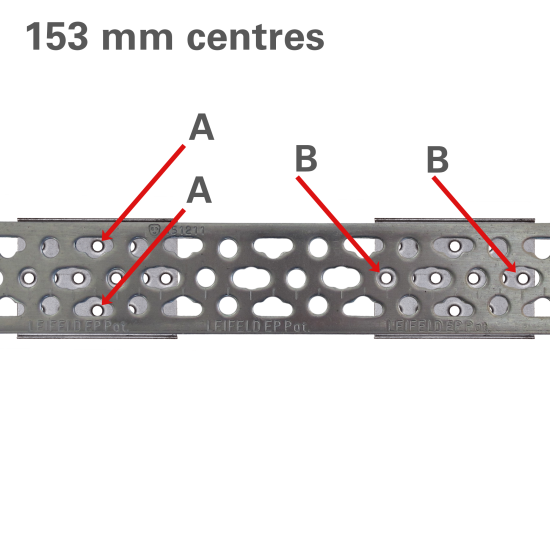

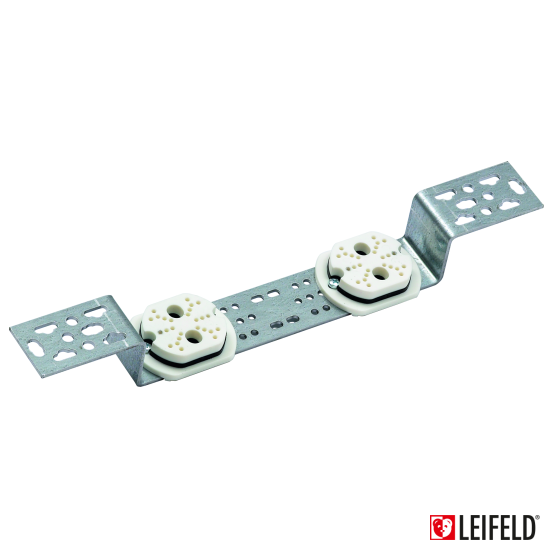

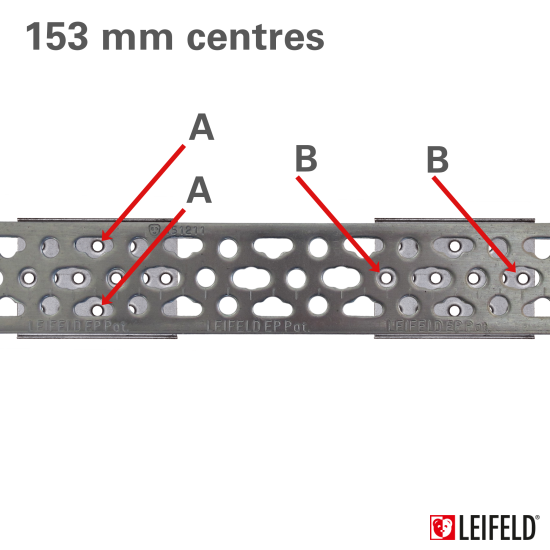

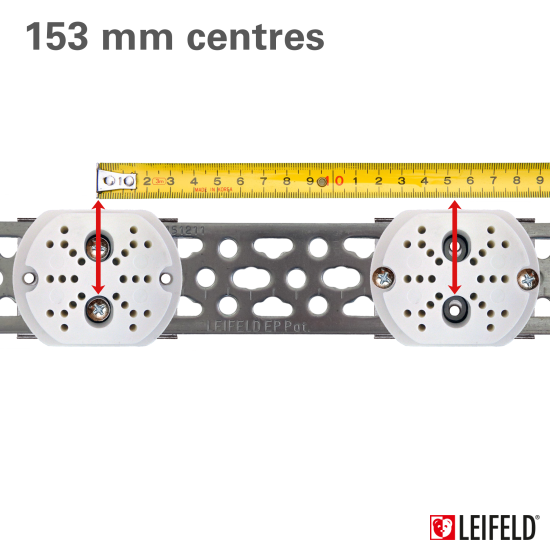

Mounting at 153 mm centres requires one LEIFELD Sound-Shield be secured using the inside holes on the LEIFELD Sound-Shield and the slotted holes (A) on the LEIFELD Strap. The other LEIFELD Sound-Shield is secured using the outside holes (B) as shown.

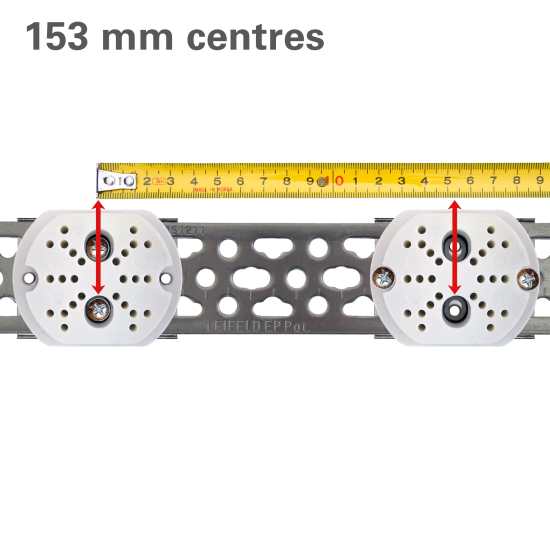

Check for 153 mm and tighten the mounting screws, finished!

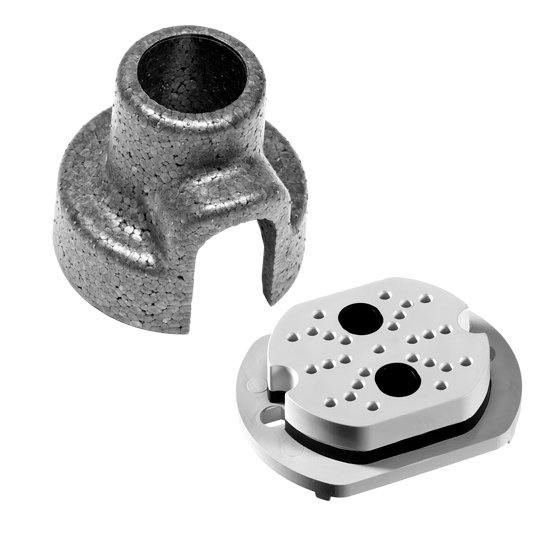

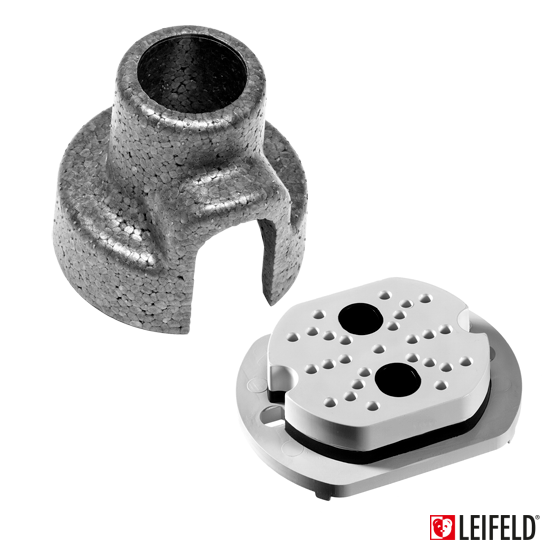

Add the LEIFELD Sound-Cap Part# 1295 for extra protection.
