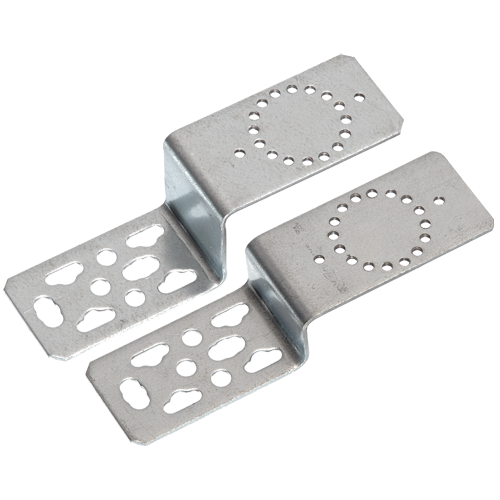

LEIFELD Unimount

33 mm or 50 mm deep, 2,5 mm material.
Ideal for elbows with 40 mm centers.
Rotate Wall-Elbows in 22,5 degree steps, secure with M5 screws.
Pre-drilled to secure a syphon using the
LEIFELD Cable Clamp Part.# 1053, a threaded-stud and a pipe-clamp.
Pack Qty. = 1 Pce.
